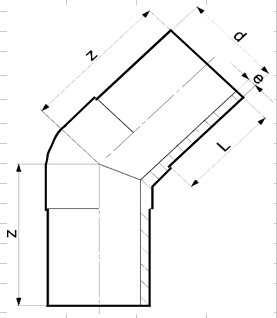

Отвод 45°
| SDR 17 (PN10) SDR 11 (PN16) |
|||
| d(mm) | z(mm) | L(mm) | e(mm) |
| 20 | 70 | 52 | 3 |
| 25 | 75 | 52 | 3 |
| 32 | 80 | 54 | 3 |
| 40 | 85 | 57 | 3.7 |
| 50 | 90 | 63 | 4.6 |
| 63 | 95 | 65 | 5.8 |
| 75 | 105 | 72 | 6.8 |
| 90 | 120 | 81 | 8.2 |
| 110 | 130 | 86 | 10 |
| 125 | 140 | 92 | 11.4 |
| 140 | 164 | 92 | 12.7 |
| 160 | 162 | 102 | 14.6 |
| 180 | 170 | 107 | 16.4 |
| 200 | 186 | 116 | 18.2 |
| 225 | 200 | 123 | 20.5 |
| 250 | 220 | 130 | 22.7 |
| 280 | 230 | 139 | 25.4 |
| 315 | 250 | 150 | 28.6 |
| d(mm) | L(mm) | R(mm) | z (mm) |
| 90 | |||
| 110 | 150 | ||
| 125 | 150 | 165 | 228 |
| 140 | 150 | 188 | 237 |
| 160 | 150 | 210 | 249 |
| 180 | 150 | 240 | 262 |
| 200 | 150 | 270 | 274 |
| 225 | 150 | 300 | 290 |
| 250 | 250 | 338 | 412 |
| 280 | 250 | 375 | 424 |
| 315 | 300 | 420 | 498 |
| 355 | 300 | 473 | 520 |
| 400 | 300 | 533 | 548 |
| 450 | 300 | 600 | 580 |
| 500 | 350 | 675 | 665 |
| 560 | 350 | 750 | 698 |
| 630 | 350 | 840 | 741 |
| 710 | 350 | 945 | 792 |
| 800 | 350 | 1065 | 847 |
| 900 | 300 | 1200 | 955 |
| 1000 | 300 | 1400 | 978 |
