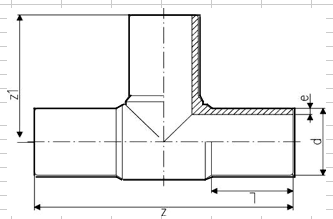

Троиник
| SDR 17 (PN10) SDR 11 (PN16) | |||
| d(mm) | Z(mm) | Z1(mm) | L(mm) |
| 20 | 150 | 75 | 52 |
| 25 | 160 | 80 | 52 |
| 32 | 170 | 85 | 54 |
| 40 | 190 | 95 | 57 |
| 50 | 210 | 105 | 63 |
| 63 | 230 | 115 | 65 |
| 75 | 264 | 132 | 72 |
| 90 | 300 | 150 | 81 |
| 110 | 330 | 165 | 86 |
| 125 | 366 | 183 | 92 |
| 140 | 396 | 198 | 92 |
| 160 | 420 | 210 | 102 |
| 180 | 460 | 230 | 107 |
| 200 | 500 | 250 | 117 |
| 225 | 540 | 270 | 122 |
| 250 | 576 | 288 | 130 |
| 280 | 616 | 308 | 139 |
| 315 | 690 | 345 | 150 |
| d(mm) | L(mm) | I (mm) | Z(mm) |
| 160 | 460 | 150 | 230 |
| 180 | 480 | 150 | 240 |
| 200 | 500 | 150 | 250 |
| 225 | 530 | 150 | 265 |
| 250 | 750 | 250 | 375 |
| 280 | 780 | 250 | 390 |
| 315 | 920 | 300 | 460 |
| 355 | 960 | 300 | 480 |
| 400 | 1000 | 300 | 500 |
| 450 | 1050 | 300 | 525 |
| 500 | 1200 | 350 | 600 |
| 560 | 1260 | 350 | 630 |
| 630 | 1330 | 350 | 665 |
| 710 | 1410 | 350 | 705 |
| 800 | 1500 | 350 | 450 |
| 900 | 1800 | 450 | 900 |
| 1000 | 2000 | 450 | 1500 |
